Linear Motion Shaft

Shaft Supports

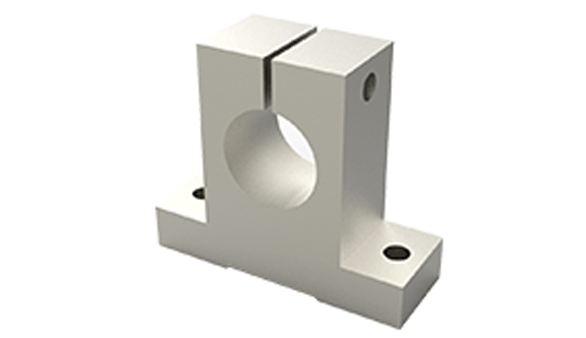

SBO series (Open Type)

Both ends of the Linear Motion Shaft, designed for ball bushings, can be supported without special machining.

Product Details

Model No.

Diameter of



shaft d

Main dimensions

 Mounting bolt spec  S1 Fastening bolt spec  S2
H E W L F T P B
WK10 Ø
10		 20 21 42 14 32.8 6 18 32 M5 M4
WK12 Ø
12		 23 21 42 14 38 6 20 32 M5 M4
WK13 Ø
13		 23 21 42 14 38 6 20 32 M5 M4
WK16 Ø
16		 27 24 48 16 44 8 25 38 M5 M4
WK20 Ø
20		 31 30 60 20 51 10 30 45 M6 M5
WK25 Ø
25		 35 35 70 24 60 12 38 56 M6 M6
WK30 Ø
30		 42 42 84 28 70 12 44 64 M8 M6
WK35 Ø
35		 50 49 98 32 82 15 50 74 M10 M8
WK40 Ø
40		 60 57 114 36 96 15 60 90 M10 M8
