Linear Motion Guide

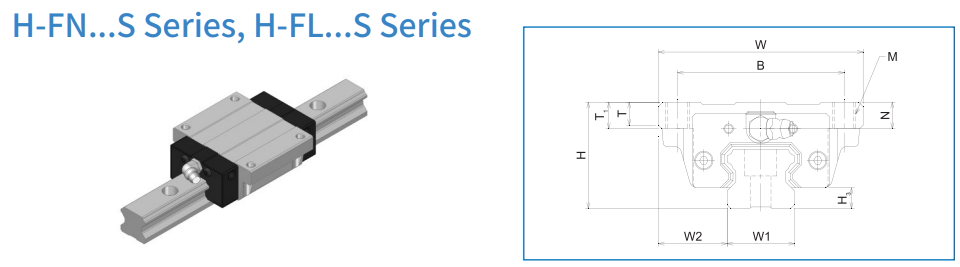

Linear Motion Guide – H…S Series

Flange Standard Type (FN)

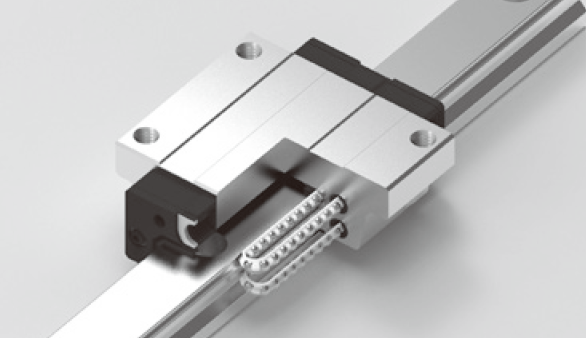

– Spacer retainer type

– A general-purpose type with tapping on the block flange, allowing for mounting in both upper and lower directions.

– High-rigidity, high-load, four-way equal-load type.

Product Details
