Linear Motion Guide
Wide Type Linear Motion Guide – HB Series

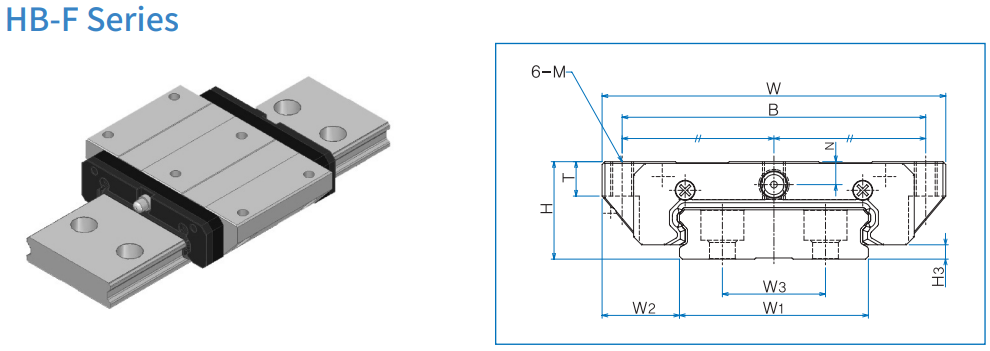

Flange Standard Type (F)
– Exceptional quality ensures high precision, leading to significant energy and cost savings
– Our high-rigidity, high-precision products guarantee long-term, stable performance and running accuracy.
– Superior wear resistance and low frictional drag result in an extended service life.

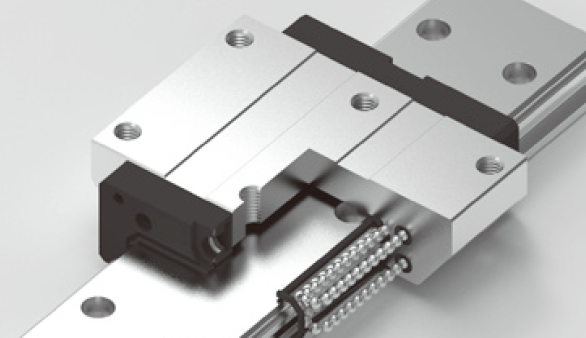

– The ball bearings share the same D/F combination structure, providing excellent self-aligning capabilities and superior error absorption.
– Compared to the H-series, this product features more ball bearings, resulting in higher rigidity. The wider rail also allows it to handle substantial moment loads on a single axis.

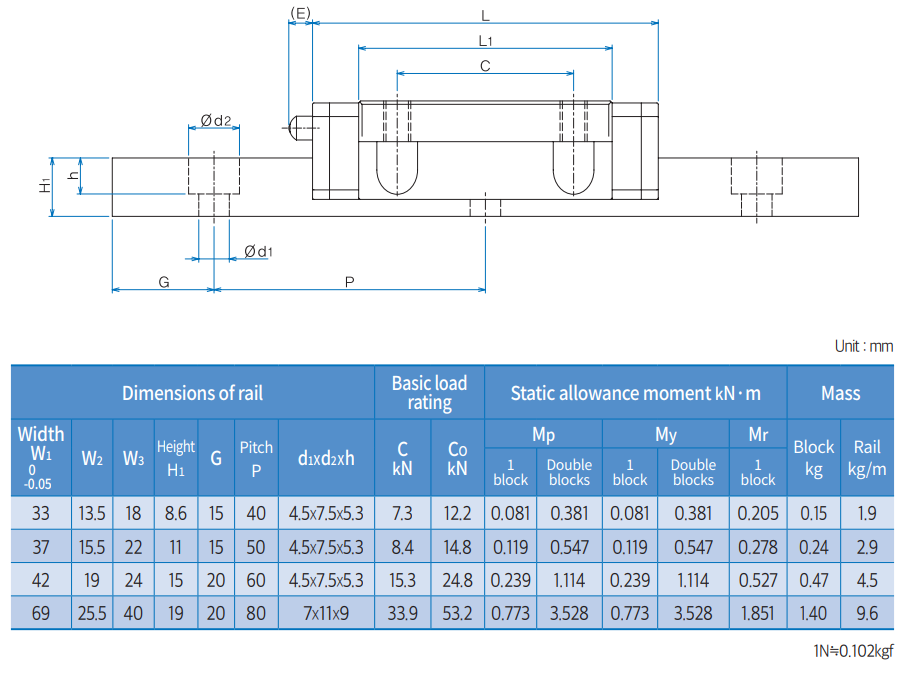

Product Details
