Linear Motion Guide

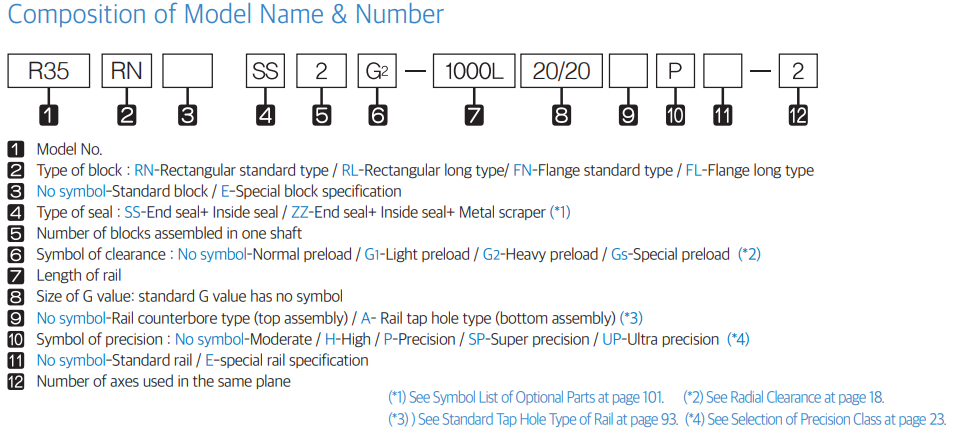

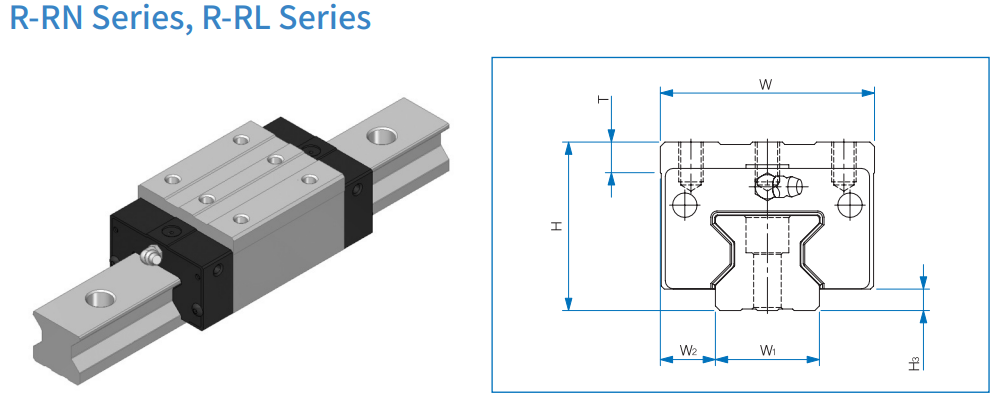

Roller Linear Motion Guide – R Series

Rectangular, Long Type(RL)

– This is a longer-type block that shares the same cross-section as the R-RN series, with an extended linear motion block to achieve a higher load rating.

– It is a high-rigidity, heavy-load type that provides equal load ratings in all four directions.

Product Details

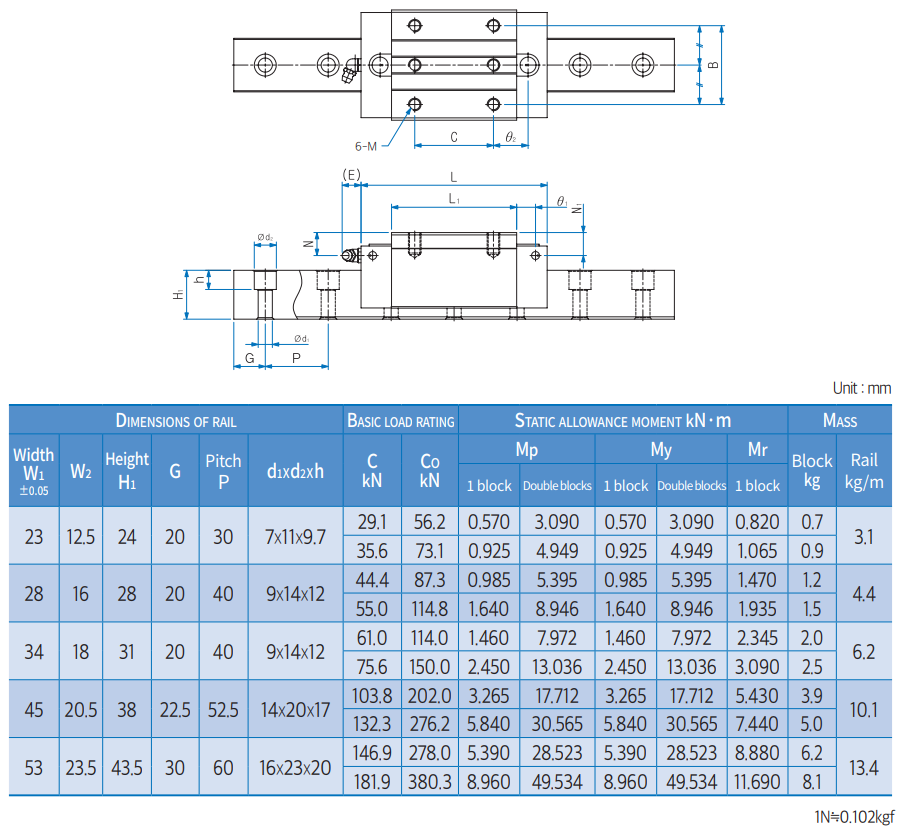

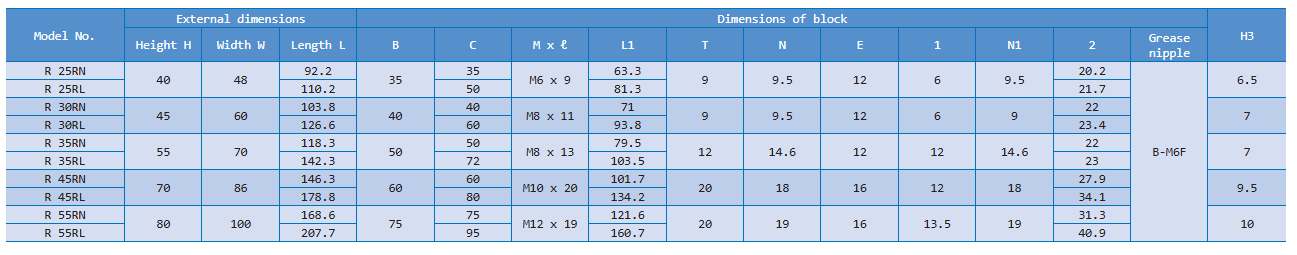

Model No. External dimensions Dimensions of block H3
Height H Width
W		 Length
L		 B C M
x ℓ		 L1 T N E 1 N1 2 Grease
nipple
R 25RN 40 48 92.2 35 35 M6 x 9 63.3 9 9.5 12 6 9.5 20.2 B-M6F 6.5
R 25RL 110.2 50 81.3 21.7
R 30RN 45 60 103.8 40 40 M8 x 11 71 9 9.5 12 6 9 22 7
R 30RL 126.6 60 93.8 23.4
R 35RN 55 70 118.3 50 50 M8 x 13 79.5 12 14.6 12 12 14.6 22 7
R 35RL 142.3 72 103.5 23
R 45RN 70 86 146.3 60 60 M10 x 20 101.7 20 18 16 12 18 27.9 9.5
R 45RL 178.8 80 134.2 34.1
R 55RN 80 100 168.6 75 75 M12 x 19 121.6 20 19 16 13.5 19 31.3 10
R 55RL 207.7 95 160.7 40.9
