Linear Motion Guide

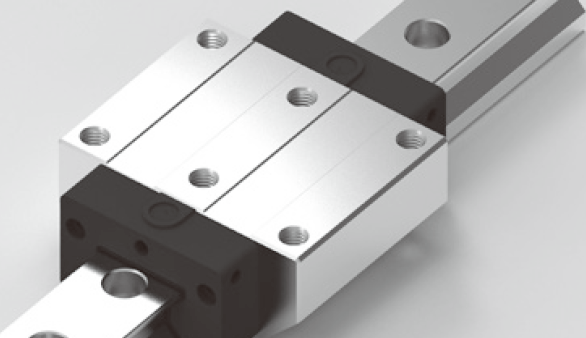

Roller Linear Motion Guide – R Series

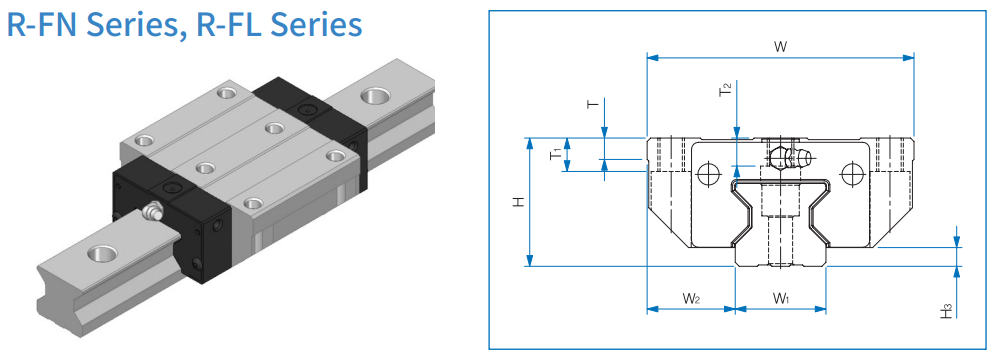

Flange, Standard Type(FN)

– This linear motion guide features tapped holes on the block’s flange, allowing for versatile mounting in both upward and downward directions.

– It is a high-rigidity, heavy-load type that provides equal load ratings in all four directions.

Product Details

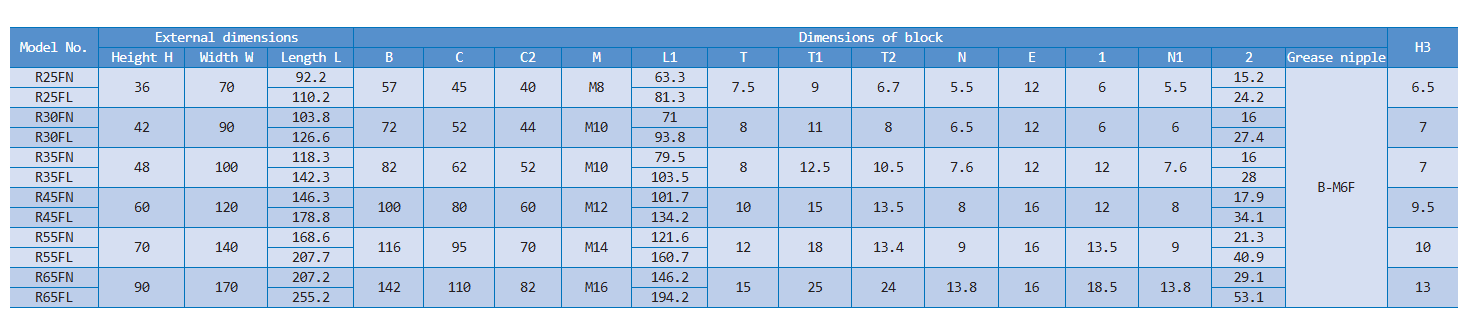

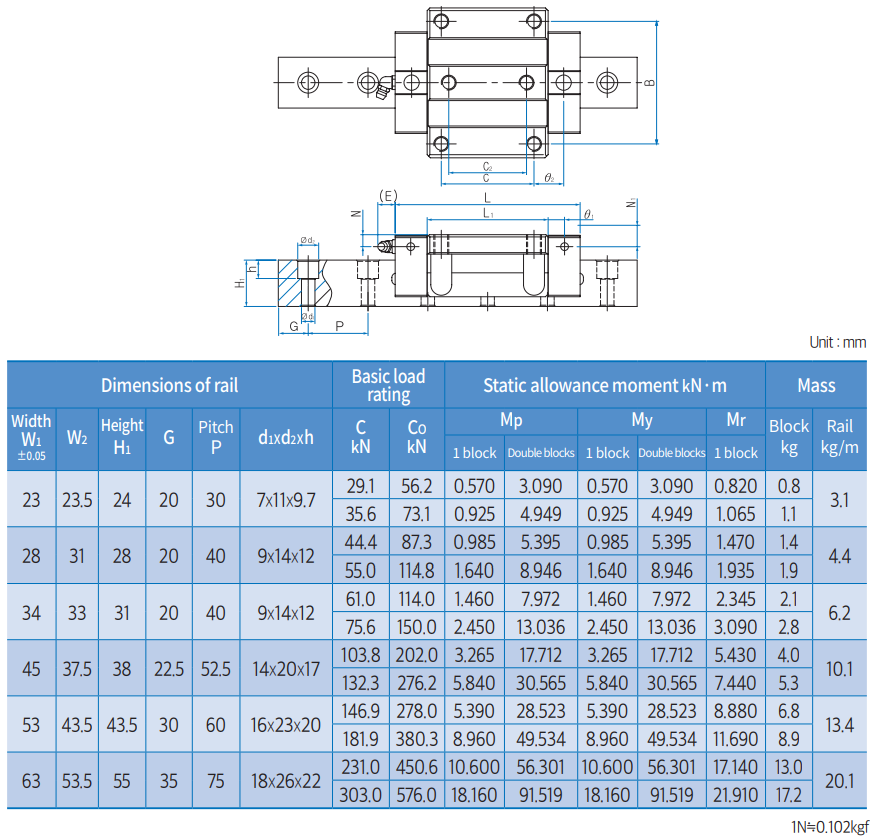

Model No. External dimensions Dimensions of block H3
Height H Width W Length L B C C2 M L1 T T1 T2 N E 1 N1 2 Grease nipple
R25FN 36 70 92.2 57 45 40 M8 63.3 7.5 9 6.7 5.5 12 6 5.5 15.2 B-M6F 6.5
R25FL 110.2 81.3 24.2
R30FN 42 90 103.8 72 52 44 M10 71 8 11 8 6.5 12 6 6 16 7
R30FL 126.6 93.8 27.4
R35FN 48 100 118.3 82 62 52 M10 79.5 8 12.5 10.5 7.6 12 12 7.6 16 7
R35FL 142.3 103.5 28
R45FN 60 120 146.3 100 80 60 M12 101.7 10 15 13.5 8 16 12 8 17.9 9.5
R45FL 178.8 134.2 34.1
R55FN 70 140 168.6 116 95 70 M14 121.6 12 18 13.4 9 16 13.5 9 21.3 10
R55FL 207.7 160.7 40.9
R65FN 90 170 207.2 142 110 82 M16 146.2 15 25 24 13.8 16 18.5 13.8 29.1 13
R65FL 255.2 194.2 53.1
