Linear Motion Guide

Miniature Linear Motion Guide – M Series

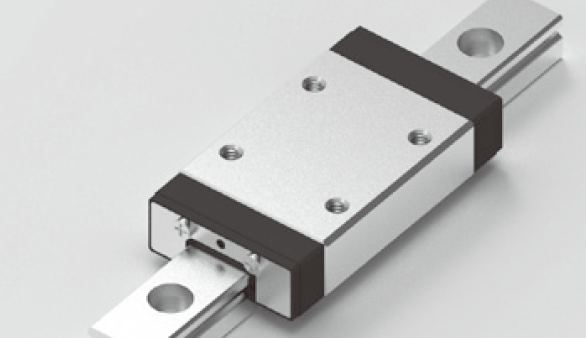

Miniature, Long Type(ML)

This is a longer version of the M-N series, sharing the same cross-section while increasing the linear motion block’s length to achieve a higher load rating.

Product Details

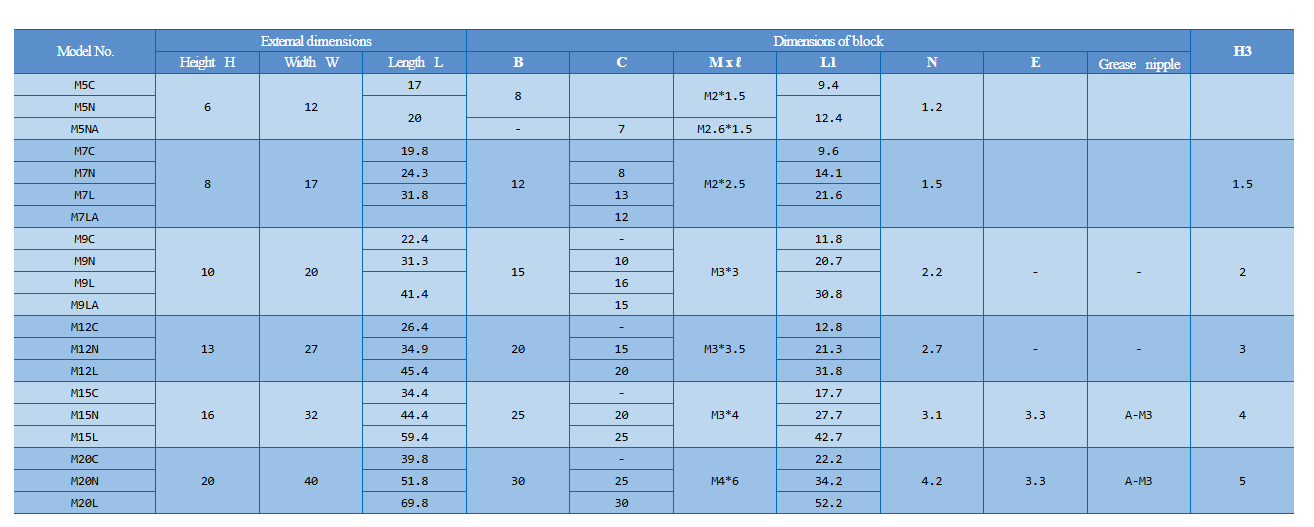

Model No.

External dimensions

Dimensions of block

 H3

Height H

Width W

Length L

 B C M
x ℓ		 L1 N E

Grease nipple
M5C 6 12 17 8 M2*1.5 9.4 1.2
M5N 20 12.4
M5NA – 7 M2.6*1.5
M7C 8 17 19.8 12 M2*2.5 9.6 1.5 1.5
M7N 24.3 8 14.1
M7L 31.8 13 21.6
M7LA 12
M9C 10 20 22.4 15 – M3*3 11.8 2.2 – – 2
M9N 31.3 10 20.7
M9L 41.4 16 30.8
M9LA 15
M12C 13 27 26.4 20 – M3*3.5 12.8 2.7 – – 3
M12N 34.9 15 21.3
M12L 45.4 20 31.8
M15C 16 32 34.4 25 – M3*4 17.7 3.1 3.3 A-M3 4
M15N 44.4 20 27.7
M15L 59.4 25 42.7
M20C 20 40 39.8 30 – M4*6 22.2 4.2 3.3 A-M3 5
M20N 51.8 25 34.2
M20L 69.8 30 52.2
