Linear Motion Guide

Linear Motion Guide – H…S Series

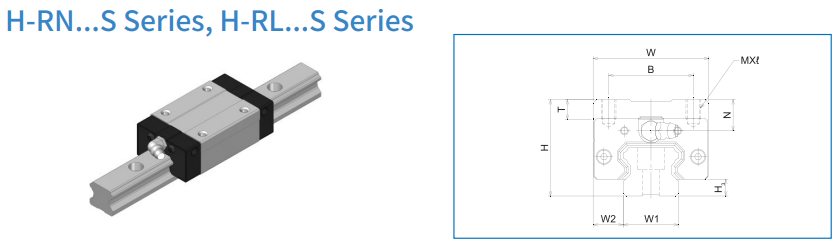

Rectangular Long Type (RL)

– This type has the same cross-sectional shape as the H-RN series, but the total length (L1) of the linear motion block has been increased to boost the rated load.

– High rigidity, heavy load, and four-way equal load type.

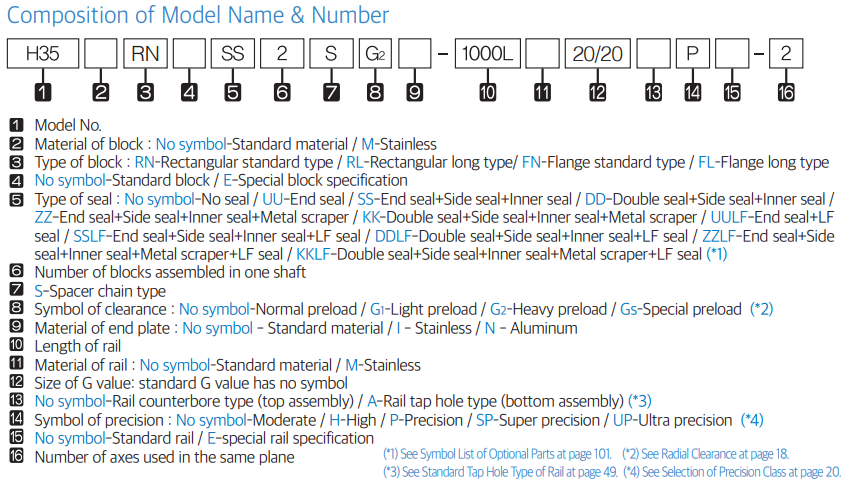

Product Details

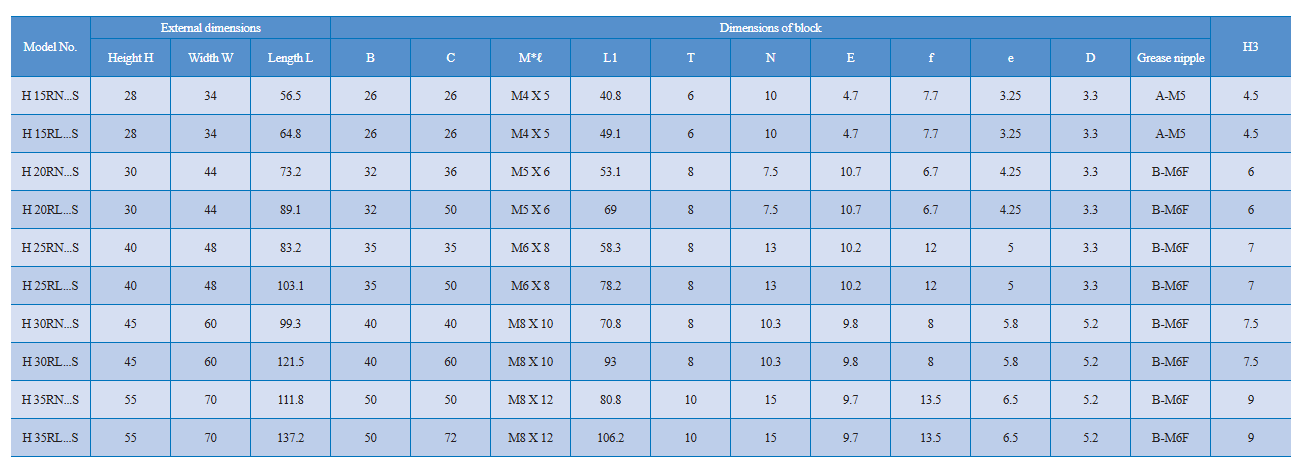

Model No. External dimensions Dimensions of block H3
Height H Width
W		 Length
L		 B C M*ℓ L1 T N E f e D Grease
nipple
H 15RN…S 28 34 56.5 26 26 M4
X 5		 40.8 6 10 4.7 7.7 3.25 3.3 A-M5 4.5
H 15RL…S 28 34 64.8 26 26 M4
X 5		 49.1 6 10 4.7 7.7 3.25 3.3 A-M5 4.5
H 20RN…S 30 44 73.2 32 36 M5
X 6		 53.1 8 7.5 10.7 6.7 4.25 3.3 B-M6F 6
H 20RL…S 30 44 89.1 32 50 M5
X 6		 69 8 7.5 10.7 6.7 4.25 3.3 B-M6F 6
H 25RN…S 40 48 83.2 35 35 M6
X 8		 58.3 8 13 10.2 12 5 3.3 B-M6F 7
H 25RL…S 40 48 103.1 35 50 M6
X 8		 78.2 8 13 10.2 12 5 3.3 B-M6F 7
H 30RN…S 45 60 99.3 40 40 M8
X 10		 70.8 8 10.3 9.8 8 5.8 5.2 B-M6F 7.5
H 30RL…S 45 60 121.5 40 60 M8
X 10		 93 8 10.3 9.8 8 5.8 5.2 B-M6F 7.5
H 35RN…S 55 70 111.8 50 50 M8
X 12		 80.8 10 15 9.7 13.5 6.5 5.2 B-M6F 9
H 35RL…S 55 70 137.2 50 72 M8
X 12		 106.2 10 15 9.7 13.5 6.5 5.2 B-M6F 9
