Linear Motion Guide

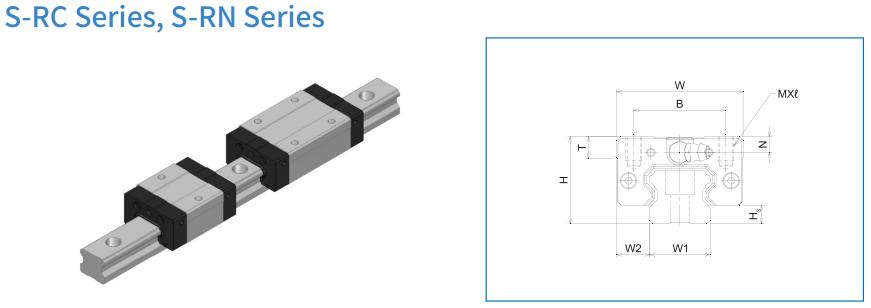

Slim Linear Motion Guide – S Series

Compact Type (RN)

– This is a slim, compact block that shares the same cross-section as the S-RC series, minimizing the width and height of the linear motion block.

– t features a four-row circular arc structure with a 45° contact angle, providing equal load ratings in all four directions.

Product Details
