Linear Motion Guide
Linear Motion Guide – H Series

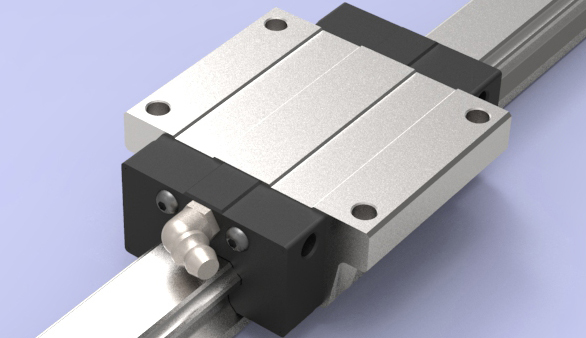

Flange Standard Type (FN)
– Flanges extended to the left and right directions on a block.
– Each flange tapped on the upper side thereof.
– Block designed to be installed in either top-down direction or down-top direction.
– High load, high rigidity and four-way equal load.
Product Details
